YIHUA 948DB+ II Soldering Iron Station Kit compatible for T12 solder iron tip with 2 tips with °F-°C Conversion, Sleep Mode, Auto Shutdown, Preset Channels, Calibration Functions
$79.99
Price: $79.99
(as of Nov 17, 2024 09:59:47 UTC – Details)
Product Description
The YIHUA 948DB+ II Digital Soldering Station Kit includes:
1 x YIHUA 948DB+ II Main Unit
1 x Soldering Handpiece (T12 Compatible)
1 x Type-K Soldering Tip
1 x Type-B Soldering Tip
1 x Soldering Iron Holder
1 x Power Cord
1 x Cleaning Sponge
1 x Tip Cleaner
Temperature Control
Powered by precision PID program to keep the temperature steady while solderingContinuously detecting and compensating in just milliseconds per intervalGives you a much smoother soldering experience
High Performance Soldering Tip
Integrated with the heating elementImproves heating performance and temperature measurement accuracy significantlyMakes tip changes much easier for users
Performance
Tip-over-heating-element DesignRoom temp. to 660°F in 5 seconds392~896°F Adjustable
Sleep Mode
Activates when non use is detected, cooling the iron to 392°F to reduce wear and extend lifespan. OFF/5/10/30 minutes adjustable.
Automatic Shutdown
Under sleep mode, activates when further non-use for 30 minutes is detected. This function prevents any safety hazards when users accidentally leave the station turned ON for an extended period.
°F-°C Conversion
You can use your preferred temperature unit for your soldering work.
Temperature Calibration
Built for users with needs for absolute precision when soldering. Simply enter the measured temperature in the calibration interface, and the station will do the math for you. No manual calculation and offsetting needed.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars
1,601
—
—
—
—
—
Price
$89.99$89.99 $16.99$16.99 $9.99$9.99 $9.99$9.99 $9.99$9.99 $9.99$9.99
Category
Soldering Station(Advanced Version) Soldering Iron Replacement Compatible with YIHUA 948DB+ II Soldering Iron Replacement Compatible with YIHUA 948DB+ II Soldering Iron Replacement Compatible with YIHUA 948DB+ II Soldering Iron Replacement Compatible with YIHUA 948DB+ II Soldering Iron Tip Compatible with YIHUA 948DB+ II
Rated Power
22W(Max. 220W)
Temperature Range
392℉~896℉
Display
LCD
PID Temperature Stabilization
✓
Temperature Calibration
✓
Sleep Mode
✓
Specifications
Model 948DB+ II Rated voltage range 110V-240V~ Rated frequency 50Hz-60Hz Rated power 75w Main unit dimensions L142 x W94 x H50mm 士 5mm Temperature range 200℃~480℃/392°F～896°F Display LED Nixie Tube Tip to ground resistance <2 ohms

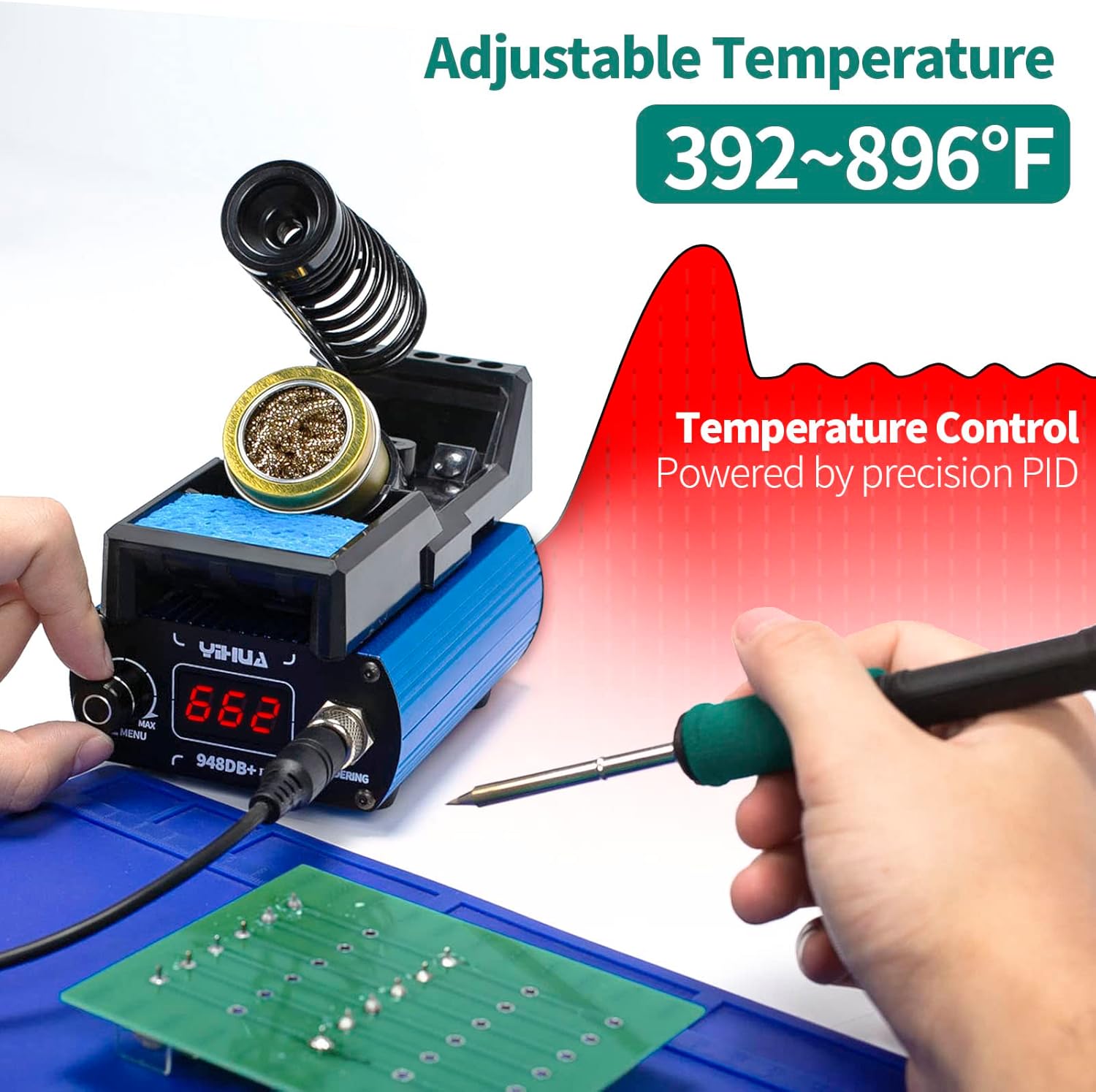

The YIHUA 948DB+ II digital soldering station uses a rapid heating soldering tip, and is able to heat to 660°F in just 5 seconds. Temperature adjustable from 392~896°F, and comes with PID program to keep the set temperature stabilized.
This soldering iron kit includes: 1 main unit, 1 soldering iron holder, 2 soldering tips (T12 soldering station compatible), 1 power cord. We designed the main soldering station unit to provide powerful performance while keeping minimal foot print, the compact unit has a dimension of 11.9mm x 9.4mm x 4.3mm (4.7”x3.7”x1.7” inches).
Built with °F-°C conversion function for easy temperature reference; sleep mode to reduce wear for the solder iron; automatic shutdown to improve user safety; 3 preset channels for quick and easy temperature changes; temperature calibration function to correct soldering iron station’s actual temperature if needed.
The soldering gun’s tip can be extracted and inserted quickly thanks to the new tip-over-heating-element design. This new design puts the temperature sensor much closer to the tip as compared to conventional soldering iron, providing more accurate actual tip temperature and temperature feedback.
Choose YIHUA with Confidence – Enjoy our 12-month US- exclusive manufacturer technical coverage and 24/7 professional assistance on Amazon. Note: This model is designed to operate on 110-240V with a US-standard power plug.
6 reviews for YIHUA 948DB+ II Soldering Iron Station Kit compatible for T12 solder iron tip with 2 tips with °F-°C Conversion, Sleep Mode, Auto Shutdown, Preset Channels, Calibration Functions
Add a review
Related Products
$79.99
Robert –
Great for the price
Comes with 3 tips, I wasn’t expecting the chisel tip so it was a great surprise.
Amazon Customer –
Great Little Hobby / Repair station for the price!
I got this unit after having a TS100 for a couple of years after the screen went out. I intend to replace the screen on the TS100 because it still works well, but I wanted a new station unit that doesn’t use and OLED display. The TS100 got me hooked on the quick heat up and stability of this style tip. I like the thinner pencil this comes with. This thing lived up to the TS100 experience very well, and I will enjoy using it as my new primary station.I love the thin pencil. As someone who has tinkered for 30 years, I grew up with the old wood burner style fixed wattage units. Later got temperature controlled off brand with a ceramic core heater. I’ve used the thicker wands my whole life. I like the TS100 for the thinner grip, but the shape is a little odd since the screen is in the wand. This unit being a station allowed me to try the thin pencil with full articulation. I love it! I can now use all the silverware skills I have to manipulate the iron! If that didn’t translate well or make sense: I hold this Iron, a pen or pencil, and a fork or spoon all the same way. I can use all the fine motor control of my finger tips to twist and move the iron nearly the full range of motion the grip allows. A thicker handle would and does automatically limit the range of motion, forcing you to use the larger and more course muscle groups of the wrist and arm to compensate.My one wish is that it would cool off when I put it in the holster, but I think the thin pencil and price may be why it doesn’t seem to, though I could be wrong. It does go into sleep mode when not used for a minute or two and wakes up right away, so either it does have some sensor and just behaves in a way I’m not used to or I’m overlooking something like a fool.I would buy this unit again, if needed. Mine came with three tips, including the D24 tip I use most often.
NULL –
A Good Budget T15-18 Station
YIHUA 948DB+ II Soldering Iron Station Kit compatible for T12 solder iron tip with 2 tips with °F-°C Conversion, Sleep Mode, Auto Shutdown, Preset Channels, Calibration Functions (ASIN: B0BCJNWTQJ)—YIHUA 948DB+ II(1) It’s light(2) plastic screen(3) small screen at that, but it’s a mini digital station, so yeah(4) handle “looked” lame, but it is quite good, actually(5) basic functions include calibration mode, 3 temp auto settings (saved), adjustable sleep time 5/10/30, auto turn off after so many minutes of sleep, which requires a true hard reset to start again, and that’s about it.(6) aluminum? or some type of metal case(7) kinda ugly vs others.(8) Multi-function mode/set knob is intuitive if you ignore instructions(9) Temp selection wander a bit but was not a problem to set specific temps(10) The only negative was that the sleep function would not come out of sleep sometimes. YIHUA sent me another want, which solved the problemComes with some crappy rosin in a small crappy container with one small crappy bronze metal tip cleaner that sheds it’s metal everywhere. You’ll still need some sort of cleaning station because the one it comes with is only good for a wand stand, as it is too small for standard size sponges or cleaning brass. You could cut the sponges down some, which would work just fine. However, the plastic wand holder is stable and easy to insert the iron into.Oh, it also comes with three YIHUA cartridges that I will probably not ever use and did not test. (I use Hakko cartridges.)It’s a solid, basic unit with the options you need, and that’s all, which I actually prefer.One star off because the temp dial is somewhat sensitive, but really not a problem. I also have the blue model and the temp dial knob is perfect. Also, the initial wand would not wake the unit sometimes, which was immediately replaced by YIHUA.
Manuk –
Awesome little soldering station
Works exactly as expected. Precise temperature control. Highly recommend!!!
Marv Heston –
Could not find temperature
I liked the value of this item, but it would not settle on a temperature. Going back. :-(The video shows the “temperature” and as you can see it just seems to be running from 600+ to 800+ degrees – Over and Over and Over.I unplugged the unit, removed the soldering iron, and changed tip. Upon reconnecting everything the results were the same, it just couldn’t seem to settle on a temperature.When I tried to use it to solder I got cold solder joints.
Mike –
Great little solder station.
It heats up in less time then it will take you to read this review which is awesome especially if you are impatient like I am. I have used this to replace some bad solenoids on a pinball machine, to recap the sound board on the machine, and to recap a wurlitzer amplifier, and it handled them all with ease. The iron puts out plenty of heat quickly and prevents you from having to wait for warm up on quick repairs. This station is perfect for the prosumer since it has a fairly compact handle and allows you to negotiate the tip without burning or taking out other components. I have no way to verify the temperature output, however, it definitely gets hot enough to solder the components that I have used it on. For the price ($79.99 before $8.00 coupon at time of review) I really like this iron as it seems to have the same quality as some of the much higher priced brand name ones. My only gripe is that sometimes the display is hard to see without tipping it up to get a good look at the temperature, so it would be nice if it had some legs to hold the display up higher so it is not parallel to your work bench. Overall, my gripe is just an opinion and this station easily earns the five (5) stars.
